Thermal transfer technology makes Swing an ideal solution for overprinting variable data (dates, forward or backward number sequences, text, lists of ingredients, barcodes, two-dimensional codes, logos) on plastic film or paper. A solution which allows to print directly on the production line, to the advantage of printing speed and quality.
With Swing
you can print up to 1000 mm/s or up to 350 prints/minute for high-definition
applications (up to 12 points/mm – 300 dpi) without ever stopping the
production line.
With the
thermal transfer printing you can change the head without changing the plate.
And you can save thermal transfer ribbon by using the ribbon saving functions.
Swing has a
bracketing system ready for the most popular machines on the market and comes
in a variety of models according to the operation of the packaging machine.
With Swing
you can print variable data on small batches or intervene on the printing
parameters directly on the touchscreen, by connecting to a computer or by using
a USB flash drive.

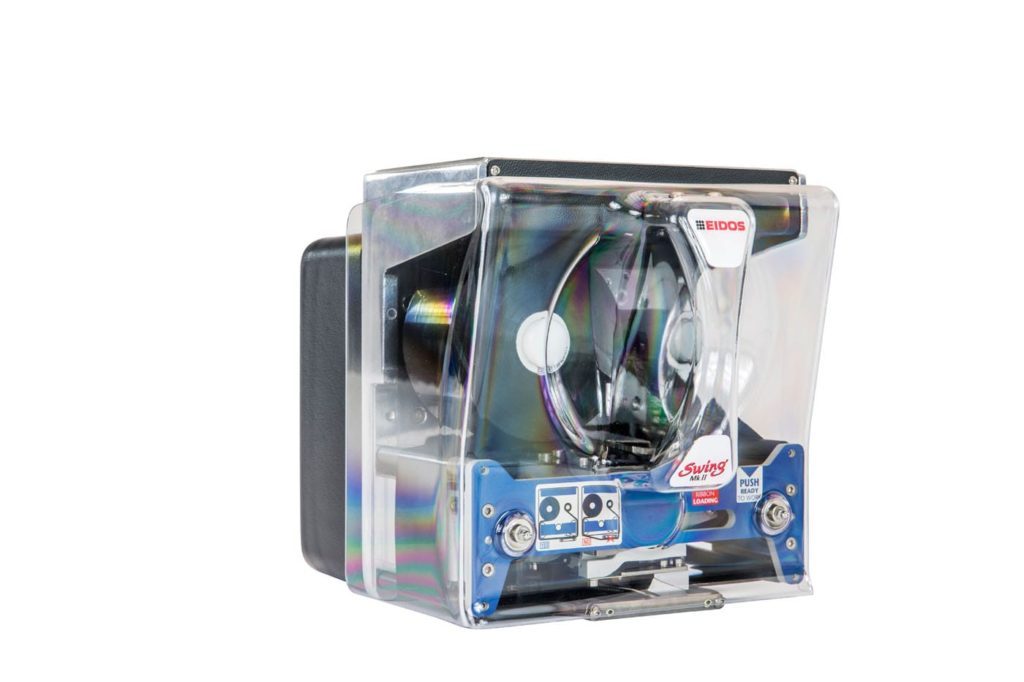

This
particularly compact SWING mode is ideal to be integrated in intermittent
packing machines. For this application, the film advances step by step and
overprinting is performed during the stops. The SWING with a mobile printing
head is used for this application.
SWING
1.ie– Max. printing area: 32 x 50mm.
SWING
2.ie– Max. printing area: 53 x 90mm.
-Printing
definition: 12 dots/mm (300dpi)
-Printing
speed: up to 220 mm/s (Low-power) or 400 mm/s (High-power).
