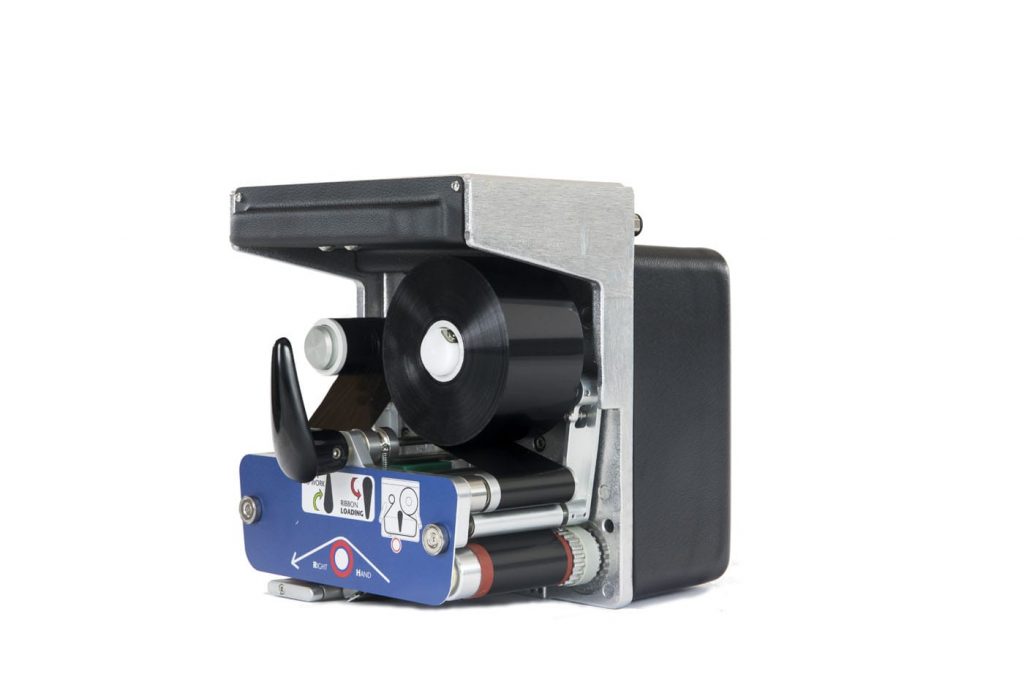

Thermal transfer technology makes Swing an ideal solution for overprinting variable data (dates, forward or backward number sequences, text, lists of ingredients, barcodes, two-dimensional codes, logos) on plastic film or paper. A solution which allows to print directly on the production line, to the advantage of printing speed and quality.
With Swing
you can print up to 1000 mm/s or up to 350 prints/minute for high-definition
applications (up to 12 points/mm – 300 dpi) without ever stopping the
production line.
With the
thermal transfer printing you can change the head without changing the plate.
And you can save thermal transfer ribbon by using the ribbon saving functions.
Swing has a
bracketing system ready for the most popular machines on the market and comes
in a variety of models according to the operation of the packaging machine.
With Swing
you can print variable data on small batches or intervene on the printing
parameters directly on the touchscreen, by connecting to a computer or by using
a USB flash drive.
This SWING
model is ideal to be integrated in continuous operating packaging machines on
which variable data overprinting on the moving film is necessary. The movement
speed of the film is generally not constant and for this reason an encoder
device must be fitted on the printing roller to allow synchronism between
printing speed and film speed.
SWING 1.CE– Max. printing area: 32 x 50mm.
SWING 2.CE– Max. printing area: 53 x 600mm.
SWING CL4– Max. printing area: 107 x 400mm.
SWING CL5– Max. printing area: 128 x 400mm.
-Printing
area: up to max. 128 x 400 mm.
-Printing
definition: 12 dots/mm (300dpi)
-Printing frequency:
up to 350 prints/minute (mod. SWING 2.CE)
