X-ray source and detection unit are always optimally placed in relation to the product. The beam passes through the base and foreign bodies specifically in this area can be detected.
This makes
side-view X-ray inspection systems with their vertically oriented images the
best tool when you want to inspect cans or PET bottles parallel to the base or
jars and bottles at an acute angle.

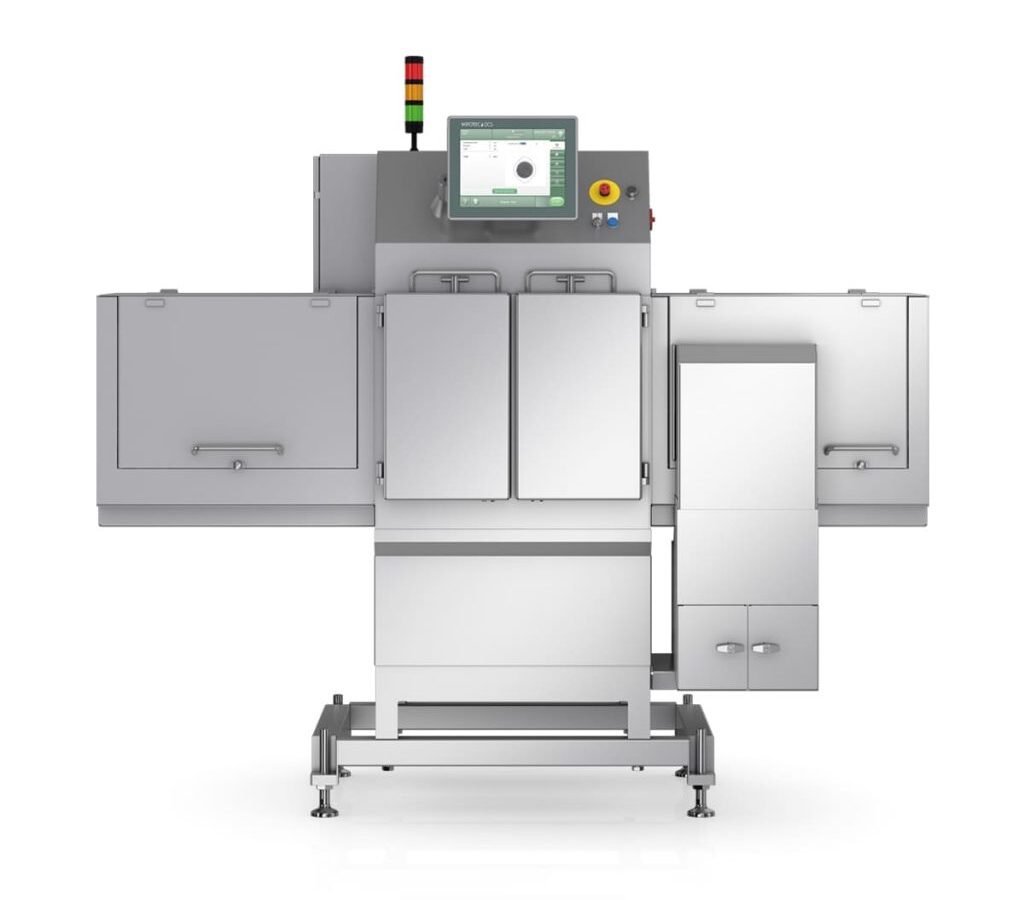

If you have to check standing products for impurities by means of X-rays and ensure the correct fill levels, then the models of the SC-S series are the perfect choice. These models follow a component design that enables an easy, space-saving integration with any existing production line.
The sideview scanner reliably checks cans, bottles, composite packaging, paper, or plastic containers. Either a belt or a chain conveyor can pass through the scanner’s housing.
Designed for protection class IP65 with full stainless steel construction, the system features a balcony design and sloped surfaces that, together with C-shaped product area, enable thorough cleaning quickly and easily.
The SC-S X-ray
scanner with leak detection is specifically designed for use in filling lines
for the inspection of filled and sealed plastic bottles and cans (e.g. the food
and beverage industry). Leak-tightness is measured in pressurised containers or
in containers filled with a protective atmosphere.
This X-ray system, which has no
radiation protection curtain, enables optimum product handling, even for tall,
slender containers, and high-speed throughput rates of up to 60,000 containers/hour.
