Coditherm is the quintessential industrial printer, presenting with all the advantages of Thermal Transfer technology. It is an international patent-owned product enable direct coding in the production line without the use of any plates.

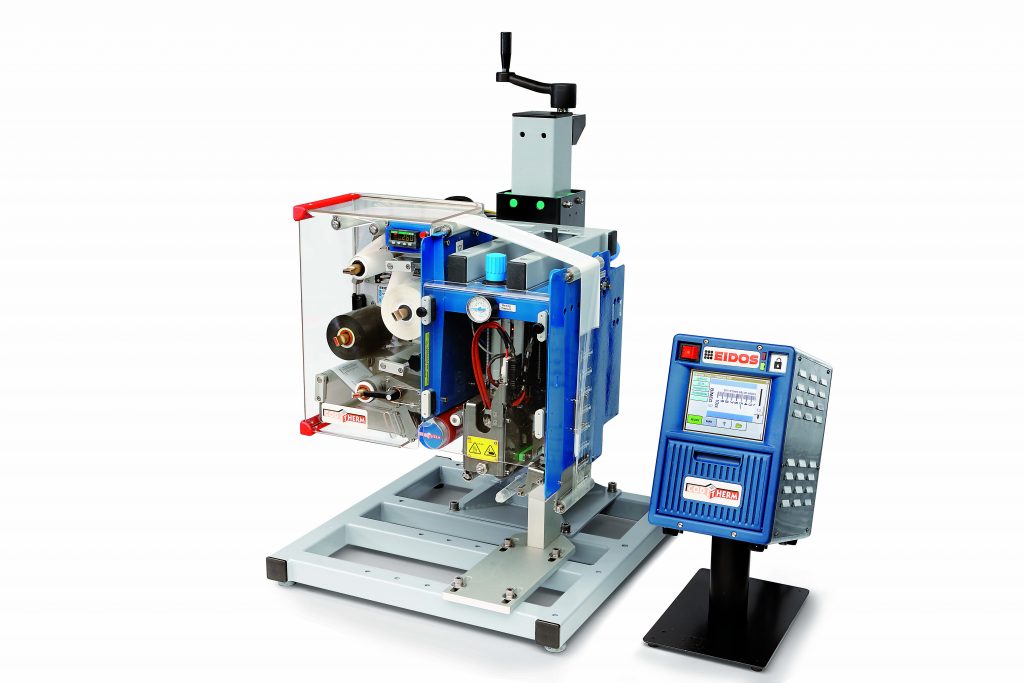

Coditherm ROUND is
the solution recommended in case of
round objects. The transfer part consists of a fixed carriage that
supports a heated roll and the object to be marked is rotating.
Coditherm is needed when there is a requirement of variable messages, like barcode, progressive numbers, or frequent variation of production lots (with different messages, logos …). When customers require variable information, the Coditherm gives advantages against the classic hot foil:
- No metal pad to be replaced at each message change
- Saving of metal pad costs and lead time
- Saving of production Stops
- Possibility to set up sequential numbers “electronically”
Structure of the system and
technology with two foils
Inked ribbon plus receptor
ribbon, packed in 500m long rolls. The ribbons are available in a wide range of
colours and types, including metallic colours.
- Max. printing area: 95 x 330 mm (the printing area depends on the
transfer device type) - Printing definition: 12 dots/mm (300dpi).
- Printing speed: up to 90mm/s
- Max. piston force: 754N (at6 bar).
- Pad heater cartridge capacity: 200W/27 Vac.
- Max. temperature setting of heater cartridge:
250C - Max. stroke of piston: 60mm.
- Recommended ribbon type: POSY types for printing
on slightly rough surfaces; RINK types for printing on glossy surfaces.
